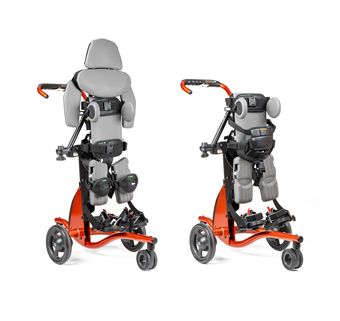

Rifton New Stander
Rifton New Stander
The Rifton NEW Stander has it all. A total redesign of the Rifton Supine and Prone Stander families. Every feature, every strap, every adjustment has been reimagined. Designers have anticipated the needs of users, caregivers and clinicians as the stander can be purchased as a supine stander, a prone stander, or a multi-position stander that can be configured as both a supine stander and a prone stander. The new Stander is available in 3 sizes with Size 1 specifically designed for Early Intervention. It’s the only stander of its type with height adjustments to allow feet at floor level to facilitate socialization with peers then raises to a height appropriate for table top activities. The Rifton Stander allows precise positioning in every imaginable configuration, quick transitions between prone and supine configurations when multi-position stander is purchased, plus Rifton’s legendary tool-free adjustments.
Here’s a look at what’s new
- Unique, highly maneuverable base frame geometry with a single front caster to allow for leg abduction (standard) and to simplify prone transfers. The frame has clearance for a mechanical lift to aid with supine transfers if needed.
- Single column height adjustment supporting standing close to the floor and raised above the floor- particularly important for the smallest users.
- Gas spring-assisted tilt from 0 to 90 degrees (horizontal to fully vertical) located on caregiver handle with double safety tilt trigger. Continuous adjustment locks in any position when the trigger is released.
- Independent leg abduction up to 30 degrees.
- Astonishing range of adjustment for leg and foot.
- Open frame design for easy transfers and access to surroundings
In Required Step 1 the color and size of the standing frame is chosen. Please refer to Size Chart tab for help with critical measurements. Each stander has significant growth potential built into the highly adjustable frame.
In Required Step 2 the configuration of the stander is chosen- Prone, Supine or Multi-Position.
Please Note:
When purchasing the Prone Configuration you will have necessary components to use the stander as a prone stander ONLY. When purchasing the Supine Configuration you will have necessary components to use the stander as a supine stander ONLY.
If you plan to use the stander in both Prone and Supine configurations, Multi-Position Configuration must be chosen to ensure purchase of all necessary components for both prone and supine standing positions. The Multi-Position Configuration is the ONLY configuration that allows the stander to be used for both prone and supine standing.
- The Prone Configuration (user leans forward on the body support) comes standard with Lateral Supports and a Pelvic Harness. When purchasing a Size 2 Stander you will have a choice of Small Pads (4 x 4.5 in.) or Large Pads (5.5 x 6 in.) on the Lateral Supports. Size 1 standers will automatically come with Small Pads, Size 3 standers will come with Large Pads. Prone Knee Cuffs can be added but are not required. Prone Knee Cuffs wrap around the user’s knee and provide medial/lateral stabilization of the knee on the padded leg support. They also prevent knee hyperextension for users who benefit from that. In addition, some rotational control may be added by tightening the strap on one side of the cuff more than the other. Prone Knee Cuffs are available for prone standing only. For Size 3 Stander ONLY a Prone Upper Trunk Support is optional but recommended. It is uniquely designed to comfortably support all body types, especially the female user.
- The Supine Configuration (user leans back on the body support) comes standard with Upper Trunk Support and Lateral Supports. When purchasing a Size 2 Stander you will have a choice of Small Pads (4 x 4.5 in.) or Large Pads (5.5 x 6 in.) on the Lateral Supports. Size 1 standers will automatically come with Small Pads, Size 3 standers will come with Large Pads. Knee Supports and a Hip Strap are also required. The Size 1 Stander is offered with Soft Knee Straps ONLY. If purchasing a size 2 or 3 Stander you will be given a choice of either Soft Knee Straps (pair) or Split Supports (pair). The supine Split Knee Supports provide more rigid support and swing away for easy loading. There is also a choice for all size standers between the Standard Hip Strap and the Rotation Control Hip Strap. The Rotation Control Hip Strap has a wide padded section that wraps around the user. The webbing piece attached to the outside can be tightened at either end to provide rotation control at the hips. Head Lateral Supports and a Butterfly Harness can be added to the Supine Configuration but are not required. The Size 1 Stander accommodates Small Head Laterals ONLY. If purchasing a size 2 Stander you will be given a choice of either Small Head Laterals (4 x 4 in.) or Large Head Laterals (4 x 6 in.). The Size 3 Stander accommodates Large Head Laterals ONLY. The Butterfly Harness is a 5-point harness that can be used instead of a Trunk Strap for supine standing. It is ideal for users who need more upper body positioning support and stabilization than the Trunk Strap offers. For Size 3 Stander ONLY a Slim-Cut Butterfly Harness is available. It performs the same positioning function as the regular butterfly harness but is especially designed for larger female users.
- The Multi-Position Configuration (stander can be switched between supine and prone configurations, quickly/easily and without tools) comes standard with Upper Trunk Support, Lateral Supports and a Pelvic Harness. When purchasing a Size 2 Stander you will have a choice of Small Pads (4 x 4.5 in.) or Large Pads (5.5 x 6 in.) on the Lateral Supports. Size 1 standers will automatically come with Small Pads, Size 3 standers will come with Large Pads. Knee Supports and a Hip Strap are also required. The Size 1 Stander is offered with Soft Knee Straps ONLY. If purchasing a size 2 or 3 Stander you will be given a choice of either Soft Knee Straps (pair) or Split Supports (pair). The supine Split Knee Supports provide more rigid support and swing away for easy loading. There is also a choice between the Standard Hip Strap and the Rotation Control Hip Strap. The Rotation Control Hip Strap has a wide padded section that wraps around the user. The webbing piece attached to the outside can be tightened at either end to provide rotation control at the hips. Head Lateral Supports, a Butterfly Harness and Prone Knee Cuffs can be added to the Multi-Position Configuration but are not required.
In Required Step 3 the Trunk Support Strap is chosen. All configurations of the new Stander require a Trunk Strap but if a Butterfly Harness has been chosen it can replace the Trunk Strap in the Supine Configuration ONLY. When choosing a Trunk Strap, choose between the Standard Trunk Strap and the Rotation Control Trunk Strap. The Trunk Rotation Control Strap has a wide padded section that wraps around the user. The webbing piece attached to the outside can be tightened at either end to provide rotational control at the trunk.
In Required Step 4 the Leg Type is chosen. Size 1 comes with a Standard Leg Type ONLY. The standard legs allow independent adjustment in upper and lower leg length, and can accommodate leg length discrepancies. Starting with Size 2 there is a choice of Standard or Advanced Leg Type. The optional advanced leg supports allow independent hip angle adjustment, 0-45 degrees forward and 0-45 degrees back, to promote hip joint development. The hip depth adjusts independently as well. The optional advanced leg supports allow independent knee angle adjustment, 0-45 degrees forward and 0-45 degrees back, to accommodate contractures. Separate upper and lower leg length adjustments ensure that users with leg length discrepancies can be comfortably supported.
Please see accessory section for Tray, additional Trunk Laterals and Medial/Lateral Thigh Supports.
Is this Product Right for You?
- A stander that can be purchased in prone, supine or multi-positional configurations
- Available in 3 sizes accommodating users from 28–65 in. (71.1-165.1cm) and up to 185 lbs. (83.9kg)
- Designed for individuals with moderate to significant need for postural support
- Critical Measurement: user’s overall height and weight
- Questions? Our therapists can help you with a proper fit. To start please click SIZING HELP and complete a simple form, or call us toll free at (800) 371-2778
Standard Features for all configurations of Rifton Stander include:
- Base Frame with front/rear casters and 2 locking 8 in. side wheels
- Base Frame clearance allowing for a mechanical lift to aid with supine transfers
- Independent leg abduction up to 30 degrees
- Single column height adjustment supporting standing close to the floor and raised above the floor
- Adjustable Sandals with straps adjust forward/back and rotate. Sandal rotates 180° during conversion between supine/prone configurations. Ankle plantarflexion/dorsiflexion adjustment in a total of 30 degrees
- Standard Leg Type ONLY for Size 1; Choice of Standard or Advanced Leg Type for Size 2 & 3
- Body Support is a large, padded area, supporting the user’s pelvis and trunk.
- Flip-Away Height Adjustable Lateral Supports
- Choice of Standard or Rotation Control Trunk Strap
- Caregiver Handle is height adjustable and moves out of the way if tray is used in prone configuration.
- Tilt Adjustment- 90 degrees from horizontal to fully vertical. Angle adjusts by squeezing double safety trigger which releases the gas spring for continuous adjustment locks in any position when the trigger is released.
- Significant growth potential in each frame size.
Standard Features for Prone Configuration also include
- Pelvic Harness- 5-point padded support
- Prone Upper Trunk Support is optional but recommended for SIZE 3 STANDER ONLY
Standard Features for Supine Configuration also include
- Height Adjustable Upper Trunk Support
- Headrest at the top of the Upper Trunk Support. Head Laterals Supports are optional
- Arm Supports swing up and out of the way behind the headrest during transfers
- Split Knee Straps ensures no pressure across patella as the knee join is supported
Standard Features for Multi-Position Configuration also include
- All standard features listed for both prone and supine configurations
Click here to view Rifton New Stander Size 1 User’s Manual!
Click here to view Rifton New Stander Size 2 & 3 User’s Manual!
Click here to view Rifton New Stander Size 1 Quick Reference Guide!
Click here to view Rifton New Stander Size 2 & 3 Quick Reference Guide!
Rifton New Stander |
Size 1 (S410) |
Size 2 (S420) |
Size 3 (S430) |
Key User Measurement: |
|||
Overall User Height*
|
28-42 in. (71.1-106.7cm) | 38-53 in. (96.5-134.6cm) | 48-65 in. (121.9-165.1cm) |
Item Dimensions: |
|||
Base length |
32.5 in. (824.6cm) | 39 (99.1cm) | 43 in. (109.2 cm) |
Base width |
21.5 in. (54.6cm) | 27 (68.6cm) | 29 in. (73.7 cm) |
Height of horizontal body support from floor |
22 – 28 in. (55.9-71.1cm) | 22.5 – 36.5 in. (57.2-92.7cm) | 23.5 - 38 in. (59.7 - 96.5 cm) |
Sandal to knee height |
6.75 – 11 in. (17.1-27.9cm) | 10 – 15.25 in. (25.4-38.7cm) | 12.25 - 19 in. (31.1-48.3cm) |
Knee to hip height |
6.25 – 10.5 in. (15.9-26.7cm) | 8.5 – 13.5 in. (21.6-34.3cm) | 12 - 17.25 in. (30.5 - 43.8 cm) |
Sandal to top of headrest |
31.5 – 43 in. (80-109.2) | 41 – 55 in. (104.1-139.7cm) | 49 - 66.5 in. (124.5-168.9cm) |
Distance between trunk laterals |
5.5 – 10 in. (14-25.4cm) | 7 – 11.5 (17.8-29.2cm) | 9 - 14 in. (22.9-35.6cm) |
Distance between medial/lateral thigh supports |
2.5 – 4 in. (6.4-10.2cm) | 3.25 – 5 in. (8.3-12.7cm) | 4 - 5.5 in. (10.2-14cm) |
Item weight (Prone) |
47 lb. (21.3kg.) | 72 lb. (32.7kg) | 104 lbs. (47.2kg) |
Item weight (Supine) |
52 lb. (23.6kg.) | 78 lb. (35.4kg.) | 115 lbs. (52.2kg) |
Maximum working load- User weight must not exceed |
75 lbs. (24kg.) | 100 lbs. (4.5kg.) | 185 lbs. (83.9kg) |
